This manual is for Moffat Gas Target Top 228092-22 installation and operation manual, which introduces the product's usage method, usage precautions, maintenance and maintenance methods, etc.

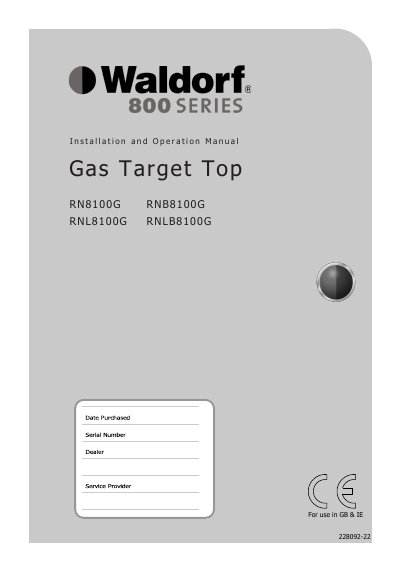

The document is an installation and operation manual for the Waldorf (Moffat) 800 Series Gas Target Top. It covers various model options including RN8100G, RNB8100G, RNL8100G, and RNLB8100G, which are available on leg stands, bench mounts, cabinet bases, or refrigerated bases.
The guide details specifications for different regions (Australia, New Zealand, UK, USA), including gas supply requirements and connection types. It provides step-by-step instructions for unpacking, location selection, assembly, fitting adjustable feet, gas connections, commissioning, and daily to periodic maintenance procedures.
| Width | 900mm |
|---|---|
| Weight (Nett) | 160 kg |
| Weight (Nett) | 180 kg |
| Gas Connection Type | 3/4" BSP Male |
Standard models can be converted between Natural Gas, LP Gas (Propane), and Butane. Town Gas is only available on specific ex-factory built models.
Installation, servicing, or gas conversion operations must only be carried out by authorized service persons.
No, the appliance must not be left on unattended while in operation.
