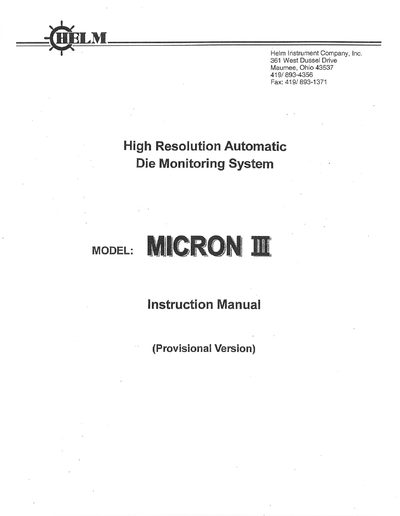

This manual describes the Micron‑3 press slug detector, a high‑resolution automatic die monitoring system used to detect faults during press operation. It covers the hardware configuration, including the two‑channel base unit (MIC3‑B) and up to three extension units (MIC3‑K) for a maximum of eight channels.
The document details panel layout, key functions, detection methods (BDC, FP1, FP2), menu selections, slowdown detection, and fault handling. It also provides wiring information for terminal block connections and outlines the system’s specifications and operation procedures.
| Maximum channels | 8 |
|---|---|
| Base unit model | MIC3-B |
| Extension unit model | MIC3-K |
| Initial mutings at startup | 3 |
| Number of samplings at startup | 8 |
| Mean value display range | -99 to 99 |
The system can support up to eight channels by connecting up to three extension units to the base unit.
Select the desired channel with the CH‑SEL key, then use the [+] and [-] keys to increase or decrease the set value.
