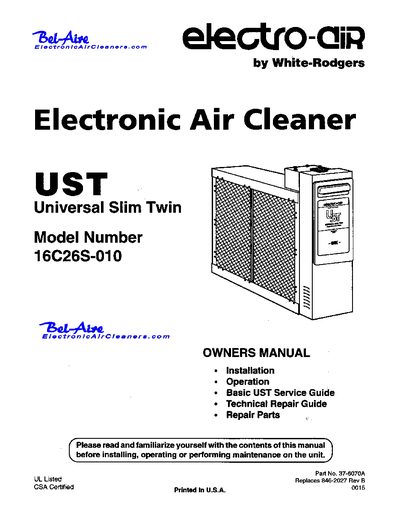

This manual provides detailed instructions for safely installing, wiring, and operating the White‑Rodgers 16C26S‑010 electronic air cleaner. It covers pre‑installation checks, mounting positions, duct connections, and wiring requirements, including compliance with local electrical codes.
The guide also includes a service section with cleaning and maintenance procedures, troubleshooting tips, and a parts list for repair. Safety warnings, such as electrocution hazards and sharp‑edge cautions, are highlighted throughout the document.
| Model Number | 16C26S-010 |
|---|---|
| Air Flow Capacity | 1000 to 2000 CFM |
| Power Requirement | 120 VAC 60 Hz, 20 A circuit |
| UL Listing | UL Listed; Replaces 846-2027 Rev B |
| CSA Certification | CSA Certified |
It must be mounted in the return air duct on the air‑entering side of the furnace, with the cell face at a right angle to the airflow and a clearance of 14 inches for removal of cells and pre‑filters.
Inspect the cells and pre‑filters once a month and clean them every one to three months, depending on household conditions.
