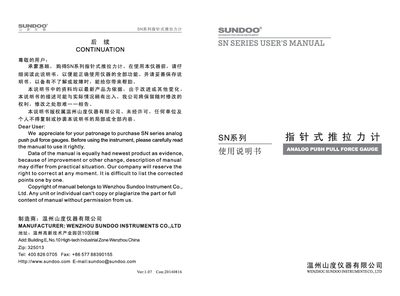

The Sundoo SN Series analog force gauge is a compact push‑pull instrument for measuring force. This manual provides safety guidelines, installation steps, and detailed operating procedures to ensure accurate and reliable testing.
Key topics include proper clamp selection, screw installation, tolerance setting, peak‑load testing methods, and routine maintenance. Follow the instructions to avoid overload, protect the device from extreme temperature or humidity, and maintain measurement accuracy.
| Mounting screw size | M3x14 |
|---|
Use four M3 screws to fix and install the gauge on the stand.
Turn the two needles on the tolerance indicator to set the maximum and minimum tolerance limits.
