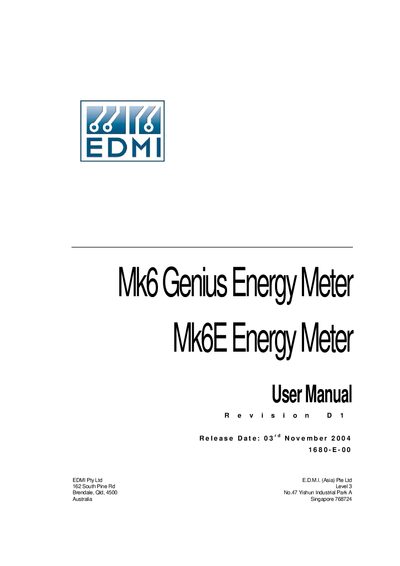

This document describes the features and characteristics of the Mk6 G enius Energy Meter Mk6E Ener User M i s i o n D 1 R e l e a s e D a t e : 0 3 r d 1 6 8 0 - E - 0 0 EDMI Pty Ltd, including external features, dimensions and mounting, and connections.
This manual covers the EDMI Genius/Mk6E energy meter, describing its physical features, terminal connections, and basic operating principles. It includes safety information, meter dimensions, and an overview of the LCD display and button functions.
The document is organized into chapters on installation, EziView software usage, data viewing, register definitions, configuration procedures, communication ports, alarm handling, security settings, and advanced topics such as scripting and testing. Appendices provide system specifications and guidance for integration with MV‑90 software.
| Watt hours (Wh) | total Wh (fundamental and harmonic components) |
|---|---|
| Voltage (V) | True RMS voltage |
| Frequency (Hz) | Fundamental system frequency |
The event log extension (005) must be loaded for MV90 to work correctly.
Class 1 and Class 2 meters comply to IEC1036, while Class 0.5 meters comply with IEC687, and the meters also meet relevant parts of AS1284.
