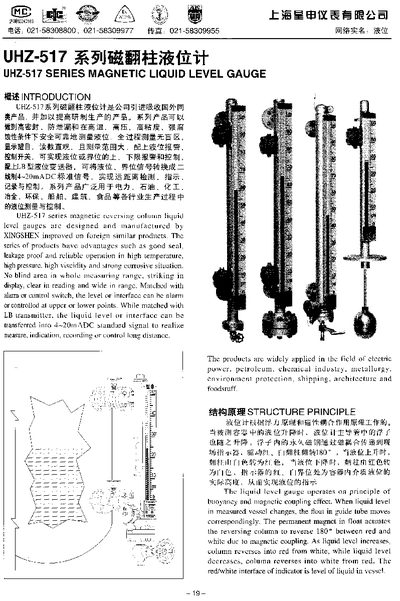

The UHZ-517 series magnetic liquid level gauge from Xingshen is designed for reliable level measurement in electric power, petroleum, chemical, metallurgy, environmental protection, shipping, architecture and food industries. The gauge uses a buoyancy principle with a magnetic coupling that drives a reversing column to indicate level.
Various models offer features such as high‑temperature operation, explosion‑proof construction, different tube mounting styles, and optional 4‑20 mA transmitters. Installation illustrations show top‑mounted, side‑mounted, bypass‑tube and inner‑float configurations, with or without drain valves.
| Measuring range | 300~15000 mm |
|---|---|
| Accuracy | +10 mm |
| Specific gravity of medium | >0.45 g/cm³ |
| Operating pressure | up to 6 MPa |
| Standard output | 4‑20 mA |
The gauge can measure liquid levels from 300 mm up to 15 000 mm.
When matched with an LB transmitter, the gauge outputs a standard 4‑20 mA signal.
Installation options include top‑mounted, side‑mounted, bypass‑tube and inner‑float types, with or without a drain valve.
