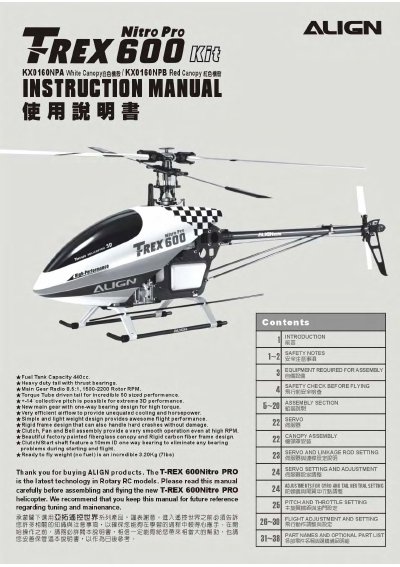

This manual introduces the T-REX 600 Nitro helicopter, describing its key features such as a 440 cc fuel tank, heavy‑duty tail, and high‑torque main gear. It emphasizes safety, recommending experienced pilot assistance, proper flight locations, and precautions against moisture, heat, and blade damage.
The document lists required equipment, detailed assembly steps, part numbers, and specifications. It also outlines pre‑flight safety checks, power‑on/off procedures, and maintenance tips to ensure reliable operation of the 3.2 kg rotorcraft.
| Length | 1160 mm |
|---|---|
| Height | 410 mm |
| Main Blade Length | 600 mm |
| Main Rotor Diameter | 1350 mm |
| Tail Rotor Diameter | 240 mm |
| Motor Pinion Gear | 20 T |
| Autorotation Tail Drive Gear | 180 T |
| Drive Gear Ratio | 8.5:1 |
| Flying Weight | Approx. 3.2 kg |
| Fuel Tank Capacity | 440 cc |
| Battery Voltage (Starter) | 11.1~14.8 V Li‑Po 2500 mAh |
The fuel tank holds 440 cc of fuel.
The starter uses an 11.1 V to 14.8 V Li‑Po 2500 mAh battery.
Check that no other user is on the same frequency, verify transmitter and receiver batteries, ensure the throttle stick is idle, and follow the correct power‑on/off sequence.
It measures 1160 mm in length, 410 mm in height, with a main rotor diameter of 1350 mm and a tail rotor diameter of 240 mm.
