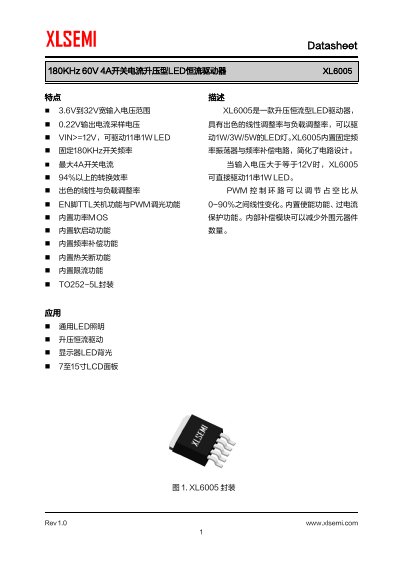

XL6005 is a 180KHz 60V 4A boost LED constant current driver with wide input voltage range, high conversion efficiency, and built-in multiple protection functions.
The XLSEMI XL6005 is a boost constant current LED driver featuring a fixed 180KHz switching frequency and a maximum switch current of 4A. It operates with a wide input voltage range from 3.6V to 32V and achieves a conversion efficiency of over 94%. The device includes built-in power MOSFETs, soft-start, frequency compensation, thermal shutdown, and current limiting functions to simplify circuit design. This manual is written in Chinese.
| Input Voltage Range | 3.6V to 32V |
|---|---|
| Switching Frequency | 180KHz |
| Maximum Switch Current | 4A |
| Conversion Efficiency | >94% |
| Feedback Voltage | 0.22V |
| Package Type | TO252-5L |
The device supports an input voltage range from 3.6V to 32V.
Yes, it includes built-in soft-start, frequency compensation, thermal shutdown, and current limiting.
The maximum output switch pin voltage is 60V.
