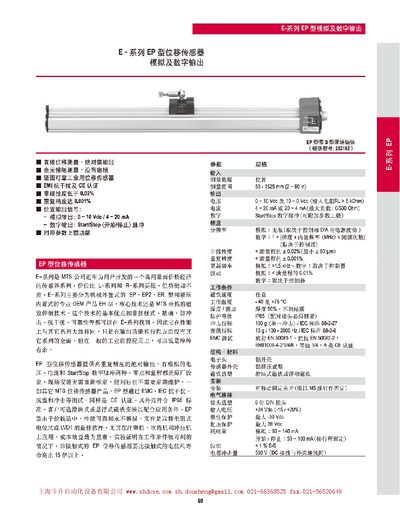

About this manual
The EP series displacement sensors from MTS provide high‑accuracy position measurement for industrial automation. They feature both analog (0‑10 Vdc or 4‑20 mA) and digital (Star/Stop) outputs, meet EMC, CE and IP65 standards, and are suitable for harsh environments.
The document lists mechanical dimensions, electrical parameters, environmental limits and wiring configurations, and includes part numbers for the sensor housing and connector assemblies. This manual is written in Chinese.
What's inside
- Product Overview
- Technical Parameters
- Electrical Output Options
- Mechanical Dimensions
- Installation and Wiring
- Environmental Ratings
Specifications
| Measurement range | 50–1525 mm (2–60 in) |
|---|
| Analog voltage output | 0–10 Vdc |
|---|
| Operating temperature | -40 °C to +75 °C |
|---|
| Ingress protection | IP65 |
|---|
Frequently asked questions
What is the measurement range of the EP sensor?
The EP sensor can measure travel from 50 mm up to 1525 mm (2 – 60 in).
