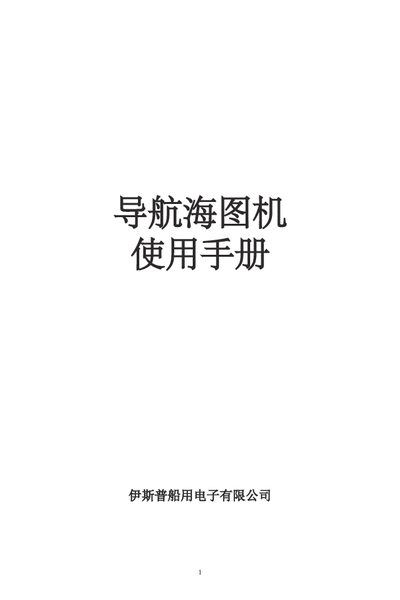

The manual begins with a preface thanking the user and outlining the importance of reading the safety precautions before operating the chartplotter. It includes warnings about proper installation, voltage limits, handling, and liability.
Subsequent sections detail the main technical parameters for various screen sizes, list the supplied accessories, describe key features such as built‑in tide tables and GPS data, and provide warranty and service information. This manual is written in Chinese.
| Screen size | 5.6 inches (6‑inch model) |
|---|---|
| Resolution | 320×240 (76800 pixels) |
| Brightness | 400 cd/m² |
| Input voltage | DC 10‑30 V |
| Power consumption | <5 W (15 V) |
| Operating temperature | -20 °C to 50 °C |
| GPS re‑lock time | <34 seconds |
| Waypoint storage capacity | 50 000 points |
| Dimensions (6‑inch model) | 220 mm × 150 mm × 70 mm |
The device operates on DC 10‑30 V.
Up to 50 000 waypoints can be stored.
The product has a one‑year free repair warranty.
