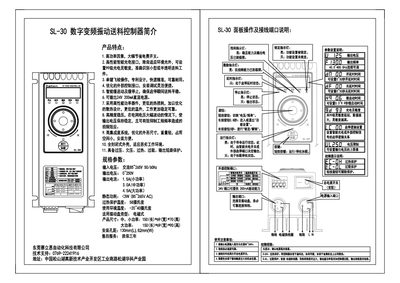

The SL-30 controller offers high power factor, intelligent photoelectric interface with adjustable sensitivity, and flexible external control ports. It includes protections such as over‑voltage, under‑voltage, over‑heat, overload and short‑circuit protection, and can output a 24 V 200 mA DC power supply.
The manual details panel operation, wiring connections, and installation guidelines, including ground‑line connection, input voltage verification, and proper mounting to ensure reliable operation in harsh environments. This manual is written in Chinese.
| Input voltage | 85‑265 V AC 50/60 Hz |
|---|---|
| Output voltage | 0‑250 V |
| Output current (low power) | 1.5 A |
| Static power consumption | <3 W (85‑265 V AC) |
| Overheat protection temperature | 58 °C |
| Operating temperature range | -20 °C to 40 °C |
| DC output power | 24 V 200 mA |
| Dimensions (medium power) | 150 mm × 70 mm |
The controller allows the output voltage upper limit to be configured through the settings menu.
The device includes over‑voltage, under‑voltage, over‑heat, overload, and output short‑circuit protection.
Press the short‑press knob to toggle between voltage and frequency modes.
Ensure a reliable connection of the ground line as instructed to avoid safety issues.
