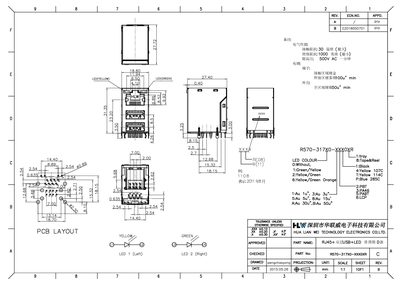

This one‑page datasheet provides the PCB layout, part numbers, and component specifications for the RJ45+3USB+LED board identified as R570‑317X0‑XXXOXR. It includes revision information, drawing scale, and approval details from Hua Lian Wei Technology Electronics.
Key components listed are the RJ45 connector, dual USB ports, and dual LEDs (yellow and green) with their respective values. The document also shows the part drawing reference and revision date (2015‑05‑26).
| Approved Part Name | RJ45+3¢2USB+LED +898 Dik |
|---|---|
| LED (Yellow) Value | 6.50 |
| LED (Green) Value | 27.40 |
| LED 1 Position | Left |
| LED 2 Position | Right |
The approved part name is RJ45+3¢2USB+LED +898 Dik.
The revision date shown on the drawing is 2015‑05‑26.
