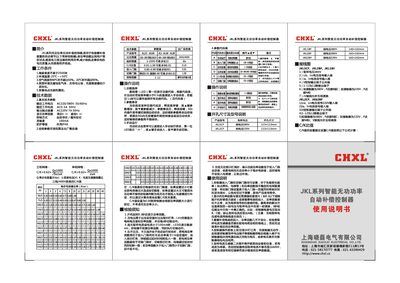

The JKL series controller automatically compensates reactive power to improve power factor and reduce losses in capacitor‑based power systems. It operates under a range of environmental conditions and provides automatic optimization as well as manual switching modes.
The manual describes installation, wiring, parameter settings (including C/K ratio), operation procedures, and safety guidelines. It also lists technical specifications such as rated voltage, current, and protection level. This manual is written in Chinese.
| Rated Input Voltage | AC220/380V 50/60Hz |
|---|---|
| Rated Input Current | AC0‑5A 50Hz |
| Output Current Capacity | AC220V 7A 50Hz |
| Power Factor Adjustment Range | Lag 0.01, Lead 0.01 |
| Control Mode | Automatic optimization / manual switching |
| Current Sensitivity | 100 mA |
| Protection Level | IP40 |
| C/K Value Range | 0.01‑1.00 |
| Operating Temperature | -25 °C ~ +50 °C |
| Maximum Altitude | ≤2500 m |
The controller is rated for AC220 V or AC380 V at 50/60 Hz.
The C/K ratio is adjusted via the controller’s menu; valid values are from 0.01 to 1.00.
The controller has an IP40 protection rating.
