The ESD5330 series speed controller is designed for precise acceleration and deceleration control of magnetic speed sensors. It supports independent adjustment of accel and decel rates, overspeed protection, and includes safety features such as short‑circuit protection and EMI shielding.

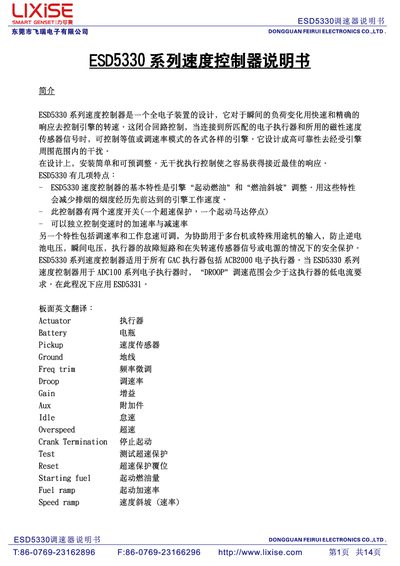

The manual provides wiring diagrams, installation instructions, performance data, and a fault‑diagnosis table to help technicians set up, calibrate, and maintain the controller in industrial applications. This manual is written in Chinese.
| Input signal range | 0.5‑50 V RMS |
|---|---|
| Accelerate rate (Accel) | adjustable |
| Decelerate rate (Decel) | adjustable |
| Maximum frequency (Overspeed) | 2400 Hz‑8300 Hz |
| Operating temperature | -40 °C to 85 °C |
| Relative humidity | up to 95 % |
| Power consumption (idle) | ≈100 mA |
| Weight | 0.91 kg |
The controller expects a signal strength of 0.5 V to 50 V RMS.
Press the Reset switch to clear the overspeed protection and return the controller to its default state.
Connect the sensor to terminals 4 (B, C, D) and ensure proper shielding as described.
