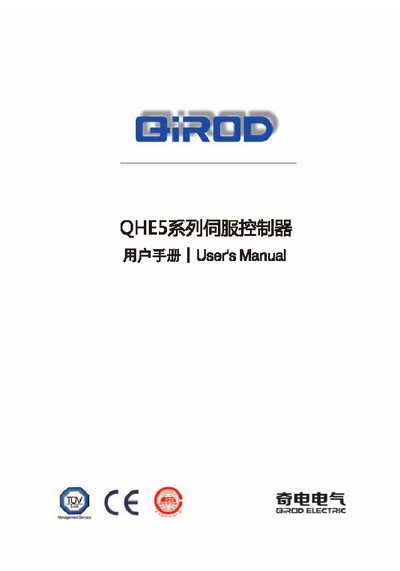

This manual introduces the QHE5 series servo controller, covering safety precautions, mechanical and electrical installation, and wiring connections. It explains how to correctly mount the unit, connect power and control cables, and verify grounding to prevent hazards.
The guide also describes the three operation modes (position, speed, torque), basic tuning procedures, and troubleshooting steps, including LED fault codes and fault handling. A parameter list and terminal function tables are provided for advanced configuration. This manual is written in Chinese.
| Power range | 200 W – 2.2 kW |
|---|---|
| Voltage rating | 220 V (single/three‑phase) |
| Communication interfaces | Rich/various interfaces |
| Encoder support | Multiple encoder types |
| Inertia identification & vibration suppression | Enabled |
Connect the three‑phase power lines U, V, W to the controller and attach the grounding conductor to the designated class‑3 ground terminal.
