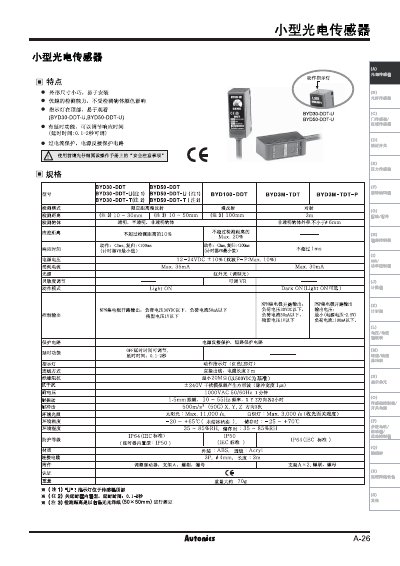

This manual describes the small photoelectric sensor series BYD30‑DDT‑U, BYD50‑DDT‑U and related models. It provides technical specifications, wiring diagrams, and safety notes for proper use.
Installation steps, adjustment procedures, and wiring connections are detailed, along with information on output types, protection circuits and environmental ratings. This manual is written in Chinese.
| Supply voltage | 12‑24 VDC |
|---|---|
| Maximum consumption current | 35 mA |
| Output type | NPN open‑collector |
| Protection circuits | Over‑current and reverse‑polarity protection |
| Weight | ≈ 70 g |
The sensor operates from 12 VDC to 24 VDC.
Yes, it has built‑in over‑current and reverse‑polarity protection circuits.
