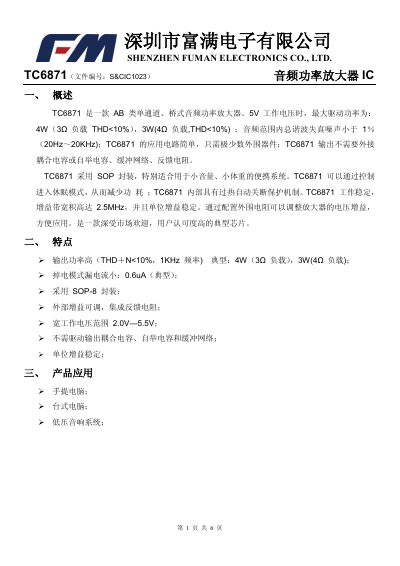

The TC6871 is a single‑channel audio power amplifier designed for portable devices. It operates from a 2.0 V to 5.5 V supply and can deliver up to 4 W into a 3 Ω load with THD below 10 %.
The device includes a shutdown pin for ultra‑low standby current (0.6 µA typical) and integrates internal bias and feedback networks, eliminating the need for external components. It is supplied in a compact SOP‑8 package and supports external gain setting via a resistor network. This manual is written in Japanese.
| Supply voltage | 2.0 V – 5.5 V |
|---|---|
| Maximum output power | 4 W into 3 Ω load (THD <10 %) |
| Shutdown current | 0.6 µA (typical) |
| ESD rating | 250 V |
| Operating temperature | -40 °C to 85 °C |
The TC6871 operates from 2.0 V to 5.5 V.
It can deliver up to 4 W into a 3 Ω load with THD below 10 %.
The shutdown current is typically 0.6 µA.
