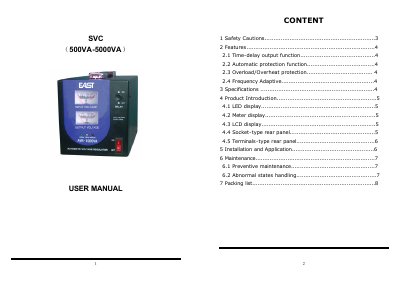

This manual introduces safety precautions for the 1 SVC stabilizer, including proper ventilation, keeping a minimum 100 mm distance from walls, and avoiding liquid exposure or opening the cover. It also outlines the device’s key functions such as time‑delay output, automatic protection, overload/overheat protection, and frequency adaptation.
Technical specifications, product introductions (LED, meter, LCD displays, rear‑panel options), installation steps, and routine maintenance procedures are detailed. A packing list and troubleshooting guide complete the document, helping users set up and keep the stabilizer operating reliably. This manual is written in Chinese.
| Rating Power | 500VA‑5000VA |
|---|---|
| Input Voltage | 100/110/120/220/230/240 V |
| Output Voltage | 100/110/120/220/230/240 V ±8 % |
| Efficiency | >98 % |
| Operating Temperature | 0 °C – 40 °C |
| Humidity Range | 10 % – 90 % |
| Panel Display | LED / LED+Meter / LCD |
| Communication Interface | RS232 / USB (optional) |
| Dimensions (W×H×D) | 125 mm × 155 mm × 265 mm (500 VA model) |
Keep the equipment in a well‑ventilated, clean area at least 100 mm from walls, do not open the cover, avoid liquids, and ensure proper grounding.
Press the time‑delay button on the front panel to select 3 seconds or 180 seconds; the indicator lights, and the AVR stays in protection mode until the delay expires.
When the internal temperature exceeds the set limit, the unit automatically cuts off power to protect the device and extend its life.
