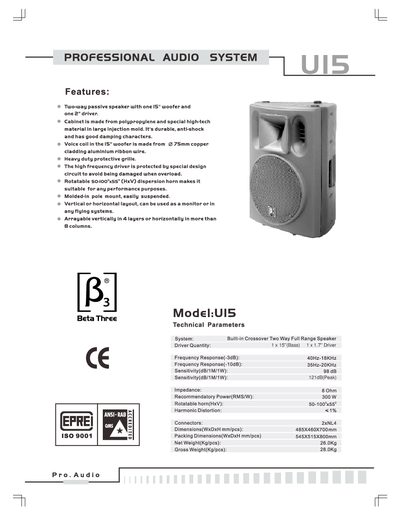

The Pro. Audio driver is a two‑way passive speaker consisting of a 15" bass woofer and a 1.7" high‑frequency driver. It features a durable polypropylene cabinet, a heavy‑duty protective grille, and a rotatable horn for flexible dispersion.
Technical specifications include a built‑in crossover, 8 Ω impedance, 300 W RMS power recommendation, and a peak sensitivity of 121 dB. The unit can be mounted vertically or horizontally and arrayed in multiple layers for large‑scale installations.
| Driver Quantity | 1 × 15" bass, 1 × 1.7" high‑frequency |
|---|---|
| Frequency Response (-10 dB) | 35 Hz – 20 kHz |
| Sensitivity (1 W/1 m) | 98 dB |
| Peak Sensitivity | 121 dB |
| Impedance | 8 Ω |
| Recommended RMS Power | 300 W |
| Rotatable Horn Dispersion | 50‑100° × 55° |
| Harmonic Distortion | < 1 % |
| Connectors | 2 × NL4 |
| Dimensions (W × D × H) | 485 mm × 460 mm × 700 mm |
| Net Weight | 26 kg |
| Gross Weight | 28 kg |
The driver has an impedance of 8 Ω.
The peak sensitivity is 121 dB.
It includes one 15" bass driver and one 1.7" high‑frequency driver.
The recommended RMS power is 300 W.
