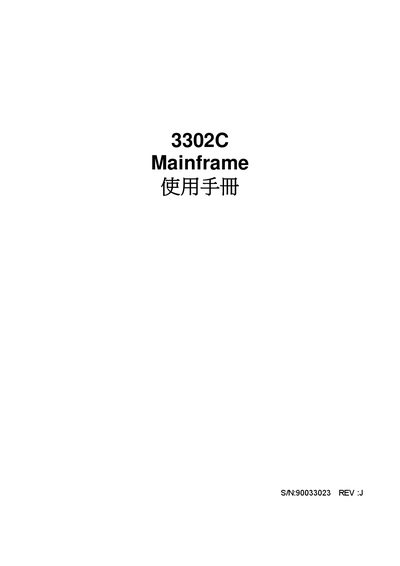

The 3302C mainframe user manual introduces the features and characteristics of the 3302C mainframe, including the declaration of hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, and polybrominated diphenyl ethers, as well as the product's service life.
The Prodigit 3302C mainframe is a controller for interchangeable electronic‑load modules such as the 3250A, 3310A, 3320 and 3330A series. It provides power‑supply settings, grounding, environmental requirements, and maintenance procedures.
The manual describes the GPIB and RS‑232 interfaces, command summaries, programming examples, and detailed specifications including voltage range, frequency, power rating, dimensions and weight. This manual is written in Japanese.
| Input voltage range | 100 V‑115 V + 10 % | 200 V‑230 V + 10 % |
|---|---|
| Frequency | 50/60 Hz |
| Maximum power | 40 W |
| Dimensions (W × H × D) | 150 mm × 177 mm × 445 mm |
| Net weight | 5 kg |
| Fuse rating | 1 A 250 V (0.5 A 250 V option) |
Turn the voltage selector switch to the 115 V position for 115 V operation, or to the 230 V position for 230 V operation.
The device includes a RS‑232 interface and an optional GPIB interface for PC control and automation.
The mainframe is rated for a maximum power of 40 W.
It can control 3250A, 3310A, 3320, 3310C and 3330A series electronic‑load modules.
