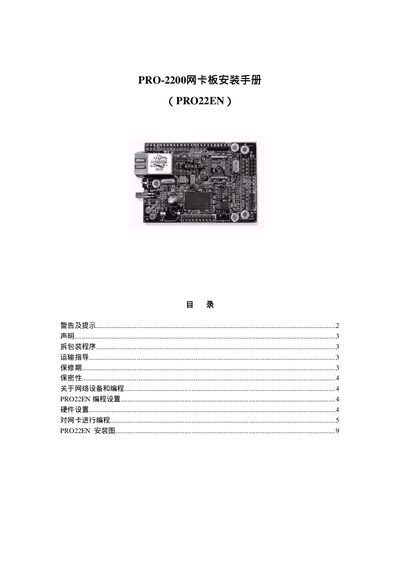

PRO-2200 Network Card Board Installation Guide (PRO22EN)

About this manual

This manual provides detailed instructions for installing the PRO-2200 network card board. It begins with safety warnings, transport guidance, and warranty information, emphasizing proper grounding, static protection, and compliance with local fire and safety regulations.

The guide then walks through unpacking, hardware installation onto the PRO-22IC controller, and programming the card using ARP commands and Telnet configuration. It includes specific settings such as baud rate, flow control, controller address, and port numbers, as well as steps to verify the IP and MAC address assignments. This manual is written in Chinese.

What's inside

• Safety Warnings
• Transport Guidance
• Warranty Information
• Confidentiality Notice
• Unpacking Procedure
• Hardware Installation
• Programming Settings
• ARP Command Usage
• Telnet Configuration
• Menu and Parameter Settings

Specifications

Frequently asked questions

What must be done before powering the device?

All external power supplies must be disconnected and the supply voltage must be verified to be within the device’s required range before powering on.
