MP2022 door control is a new comprehensive network door control developed by MicroPower company. It has the characteristics of interlocking function, door monitoring module, anti-theft alarm module, etc.
The MP2022 series is a networked access control controller developed by MicroPower. It handles RFID card identification, data storage, door lock monitoring, anti‑theft alarm, and attendance recording, and can be linked via an RS485 bus to form a network of up to 30,000 door points.

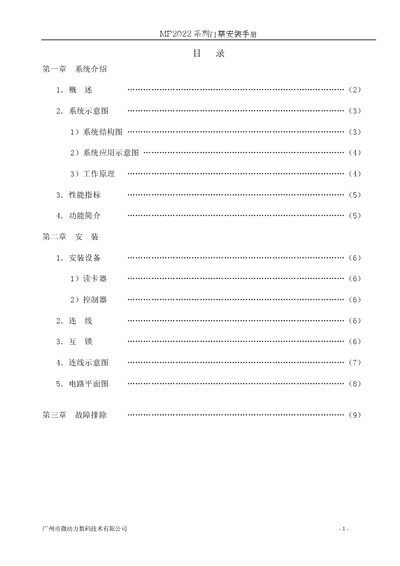

This guide provides step‑by‑step installation instructions, wiring diagrams, interlock configuration, and a troubleshooting section to help installers set up the controller, readers, and associated hardware correctly. This manual is written in Chinese.
| Working voltage | 10.8V - 13.8V |
|---|---|
| Working current (no lock) | 250 mA |
| Operating temperature | -25 °C to 75 °C |
| Operating humidity | 10%‑90% |
| Output load current | 12 VDC, 2 A |
| Reader interface voltage/current | 12 VDC, 200 mA per reader |
| Reader cable | 6‑core shielded, 24 AWG, up to 100 m |
It can manage up to 30,000 door points.
The controller connects to other units via an RS485 bus.
It monitors entry and exit by installing a reader on both sides of a door point.
