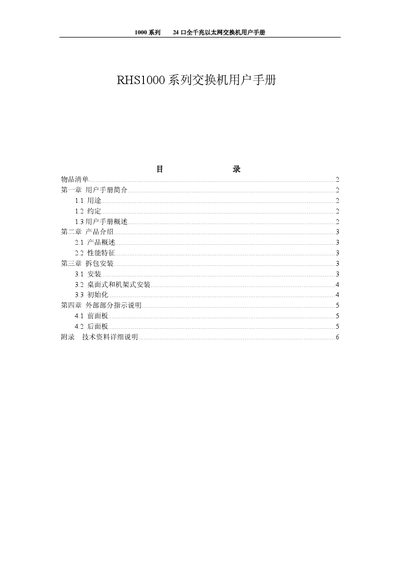

This document is the user manual for the 1000 series 24-port Gigabit Ethernet switch, which describes the purpose, performance characteristics, and installation methods of the product.
This manual provides an overview of the RHS 1000 series 24‑port gigabit Ethernet switch, including its purpose, key features and hardware layout. It describes the front and rear panel indicators, port functions, and the technical specifications such as bandwidth, MAC address table size and power requirements.
The guide also details unpacking, installation steps for desktop or rack mounting, initial power‑up procedures, and safety precautions. An appendix supplies detailed technical data, standards compliance and environmental limits. This manual is written in Chinese.
| Number of ports | 24 10/100/1000Mbps RJ45 ports |
|---|---|
| Backplane bandwidth | 48 Gbps |
| MAC address table size | 8K entries |
| Cache size | 4M2M |
| Power supply voltage | 160‑265 V AC, 50‑60 Hz |
| Maximum power consumption | ≈45 W |
| Dimensions (rack‑mount) | 250 mm × 158 mm × 44 mm |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -40 °C to 70 °C |
It provides 24 RJ45 ports that support 10/100/1000 Mbps speeds.
The switch operates on an AC supply of 160 V to 265 V at 50‑60 Hz.
The switch must be placed on a surface that can support at least 5 kg.
