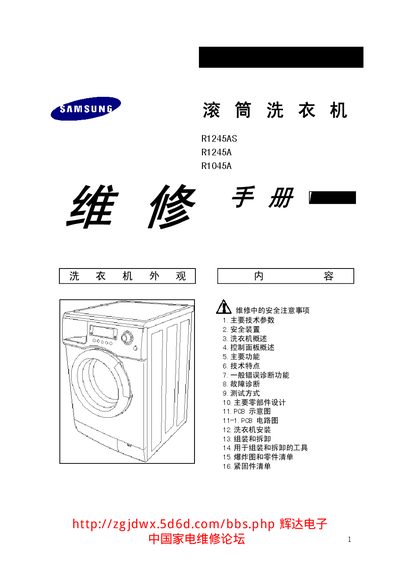

This is a washing machine maintenance manual, which mainly introduces the safety precautions, main technical parameters, safety devices, washing machine overview, control panel overview, main functions, technical features, general error diagnosis function, fault diagnosis, test methods, main parts design, PCB schematic diagram, washing machine installation, assembly and disassembly, tools for assembly and disassembly, explosion diagram and parts list, fastener list and other contents.
This manual provides safety precautions, technical specifications, and detailed descriptions of the control panel, main functions, and key components of the Samsung R1245 series front‑load washing machines. It includes wiring diagrams, installation steps, required tools, and part numbers for service technicians.
Additional sections cover firmware information, component cleaning procedures, and a comprehensive parts list with part numbers and specifications to aid in troubleshooting and repairs. This manual is written in Chinese.
| Capacity (dry) | 3.2 kg |
|---|---|
| Dimensions (W × D × H) | 668 mm × 576 mm × 890 mm |
| Weight (gross) | 69 kg |
| Power consumption (220‑240 V) | 1900 W |
| Water pressure range | 30 kPa – 800 kPa |
When the water level reaches about two‑thirds of the tub, the machine stops filling and displays an overflow error (OE) on the control panel.
The machine measures 668 mm wide, 576 mm deep, and 890 mm high.
The R1245AS model can spin at up to 1200 rpm.
