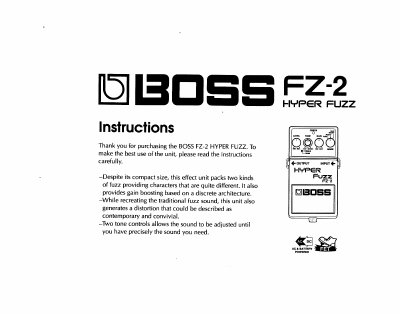

This manual provides instructions for the BOSS FZ-2 Hyper Fuzz, a compact guitar effects unit featuring two distinct fuzz sounds and a gain boost function. The device utilizes a discrete architecture to provide gain boosting alongside traditional fuzz tones.
The guide details the panel controls, including the Mode Selection Knob for switching between FUZZ 1, FUZZ 2, and GAIN BOOST modes. It explains how to adjust the Level, Tone (Treble/Bass), and Gain knobs to achieve the desired sound, as well as procedures for connecting the unit and replacing the 9V battery.
| Power Supply | DC9V; battery ( 9V ), AC Adaptor (PSA Series : Option) |
|---|---|
| Current Draw | 16mA (DC9V) |
| Input Impedance | 1MQ |
| Output Impedance | 1kQ |
| Dimensions | 70 (W) x 125 (D) x 55 (H) mm |
| Weight | 420g / 15 oz (including battery) |
The unit requires one 006/9 V battery.
Insert a plug into the Input Jack to automatically switch the unit on, or step on the Pedal Switch.
The Check indicator will go dim or no longer light up.
