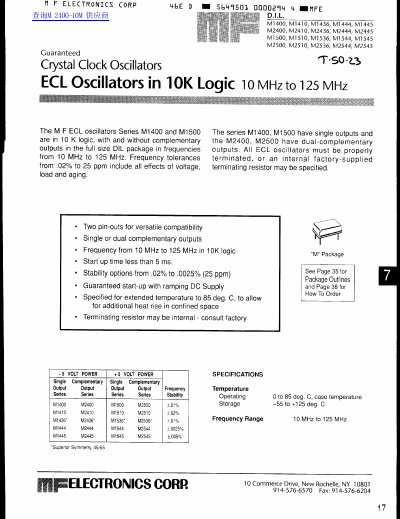

This datasheet details the MF Electronics ECL Oscillators Series, specifically models M1400, M1500, M2400, and M2500. These devices operate in 10K logic with frequencies ranging from 10 MHz to 125 MHz. The series offers single or dual-complementary outputs in DIL packages, with options for internal terminating resistors.
| Frequency Range | 10 MHz to 125 MHz |
|---|---|
| Operating Temperature | 0 to 85 deg. C |
| Storage Temperature | 55 to +125 deg. C |
| Input Voltage | -5.45 to -6.2 volts |
| Input Current | 45 to 60 mA |
Frequency tolerances range from .02% to 25 ppm, including all effects of voltage, load, and aging.
The oscillators are available in DIL packages (M1400/M1500/M2400/M2500) and Surface-Mount packages (S oscillators).
