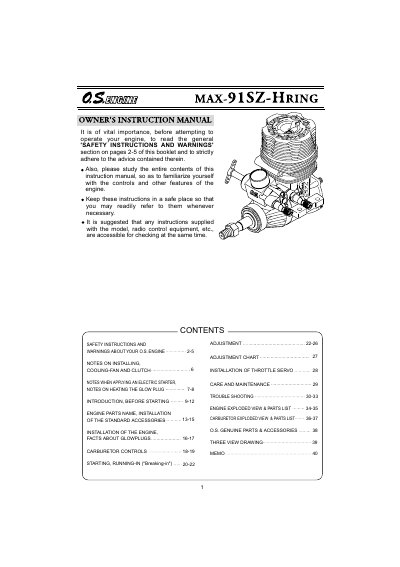

This manual introduces the safety instructions and warnings of the OS engine, the installation methods, the performance adjustment and other contents.
The document is a comprehensive user guide for the O.S. 91SZ-H internal combustion engine, specifically designed for F3C competition helicopters. It emphasizes strict adherence to safety warnings regarding fuel handling, exhaust heat, and carbon monoxide exposure before attempting operation.
Key sections cover the installation of standard accessories like the carburetor and glow plug, detailed instructions on using electric starters and heating glow plugs, and specific notes on installing cooling fans and clutches without damaging the piston. The manual also includes troubleshooting tips and exploded views for parts identification.
| Intended Use | Model helicopters |
|---|---|
| Fuel Type | Model engine fuel with 10% to 30% nitromethane |
| Lubricant Requirement | At least 18% |
| Carburetor Type | 60M-C |
A high-quality model engine fuel containing between 10% and 30% nitromethane is preferable for best throttle response.
The fuel must contain at least 18% lubricant by volume for consistent performance and long engine life.
No, this engine was specifically designed for model helicopters and should not be used for any other purpose.
