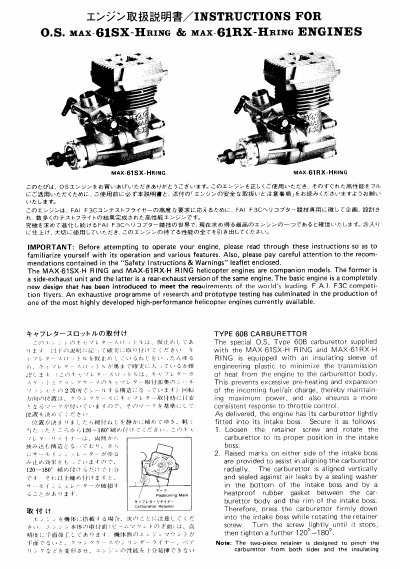

O.S. MAX-61SX-HRING/MAX-61RX-HRING Engine Instructions

Brand: O.S. Engines
Category: Other
Document type: User Manual
Language: English
Pages: 4
File format: PDF
File size: 426 KB
Published: 08 August, 2012
Updated: 08 August, 2012
Model: MAX-61SX
MD5 checksum: 8BDA610D530E53F848EF717C12C8EF1D
PDF: O.S. MAX-61SX-HRING/MAX-61RX-HRING Engine Instructions PDF

About this manual

This manual provides instructions for the O.S. MAX-61SX-HRING and MAX-61RX-HRING helicopter engines. The MAX-61SX-HRING is a side-exhaust unit, while the MAX-61RX-HRING is a rear-exhaust version of the same engine. Both models feature a completely new design developed for high-performance F.A.I. F3C competition flyers and are equipped with a special O.S. Type 608 carburettor.

What's inside

Safety Instructions
Installation
Glowplug
Fuel
Running-in
Carburetor Adjustment
Care and Maintenance
Parts List
Specifications

Specifications

Stroke	22.0mm (0.866 in.)
Practical RPM	2,000~18,000 r.p.m.
Weight	500g (21.20 oz.) / 597g (21.10 oz.)

Frequently asked questions

Which glowplug is recommended for these engines?

The recommended O.S. plug is No.8.

What type of fuel is recommended for best throttle response?

A fuel containing 10% to 30% nitromethane is recommended for the best throttle response.

What is the minimum lubricant requirement for the fuel?

It is essential to use fuel containing at least 18% lubricant by volume for consistent performance and long engine life.
