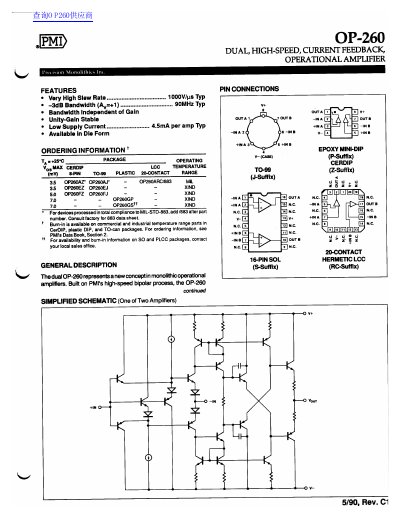

The PMI OP-260 is a monolithic dual operational amplifier built on PMI's high-speed bipolar process. It utilizes current feedback architecture to provide wideband operation independent of gain, maintaining a -3dB bandwidth of 90MHz at unity gain with a slew rate of 1000V/us.
The device operates from low supply currents of approximately 4.5mA per amplifier and is available in various packages including Die Form, CERDIP, plastic DIP, TO-can, LCC, and SOL. It is designed for high-speed applications such as video amplifiers, ultrasound systems, sonar, and data acquisition.
| -3dB Bandwidth (Unity Gain) | 90MHz Typ |
|---|---|
| Slew Rate | 1000V/us Typ |
| Supply Current per Amp | 4.5mA Typ |
| Max Supply Voltage | +18V |
The typical supply current is 4.5mA per amplifier.
Yes, the device is unity-gain stable.
Packages include Die Form, CERDIP, plastic DIP, TO-can, 20-contact LCC, and 16-pin SOL.
