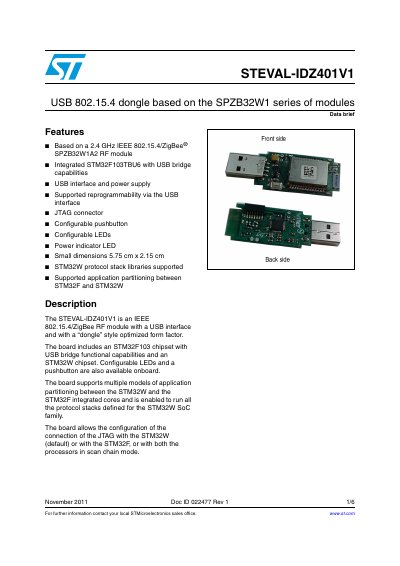

STMicroelectronics STEVAL-IDZ401V1 USB 802.15.4 Dongle Data Brief

About this manual

The STEVAL-IDZ401V1 is an IEEE 802.15.4/ZigBee RF module with a USB interface, designed in a small "dongle" style form factor measuring 5.75 cm x 2.15 cm. It integrates the SPZB32W1A2 RF module and an STM32F103TBU6 microcontroller with USB bridge capabilities.

The board supports multiple application partitioning configurations between the STM32W and STM32F integrated cores. Key features include a configurable pushbutton, configurable LEDs (including a power indicator), and a JTAG connector that can be configured to scan both processors.

What's inside

• Features
• Description
• Block diagram
• Schematic
• Main components
• Revision history

Frequently asked questions

What is the physical size of the STEVAL-IDZ401V1 dongle?

The board has small dimensions of 5.75 cm x 2.15 cm.

What type of RF module is used in this dongle?

It is based on a 2.4 GHz IEEE 802.15.4/ZigBee SPZB32W1A2 RF module.

Which processors are integrated into the board?

The board includes an STM32F 103 chipset and an STM32W chipset.
