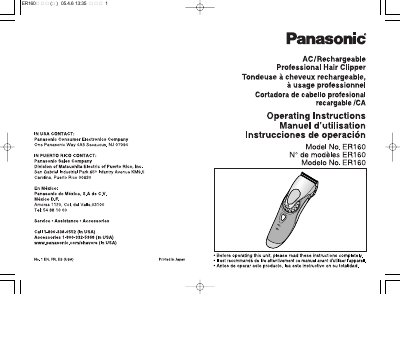

This document provides operating instructions for the Panasonic ER160 professional hair clipper. The device is designed for trimming hair and beards and can be operated using an AC power source or its built-in rechargeable nickel metal hydride batteries. Before first use, the clipper must be charged for 8 hours to activate the batteries. It features a height adjustment dial with 5 stages ranging from 1/32" (0.8 mm) to 5/64" (2.0 mm) and includes various comb attachments for precise cutting lengths.
| Power source | 120 V AC, 60 Hz |
|---|---|
| Motor voltage | 2.4V DC |
| Charging time | 1 hour |
| Battery type | Nickel metal hydride |
| Battery life | Approximately 50 minutes |
| Height adjustment range | 1/32" (0.8 mm) to 5/64" (2.0 mm) |
Charge for 8 hours before using the clipper for the first time in order to activate the built-in rechargeable batteries.
The batteries will last approximately 50 minutes on a full charge.
No, you must remove the main unit from the charging stand and turn the switch to 'ON' for use after the batteries are fully recharged.
You should lubricate the space between the stationary and moving blades with 2 or 3 drops of oil after every few uses.
