Lenze SimpleServo Model 94 Servo Controller User Manual

This manual introduces the basic operating methods of the 94 series AC servo drive, mainly including product features, circuit principles, wiring instructions, parameter settings, indicator light instructions, fault diagnosis and troubleshooting.

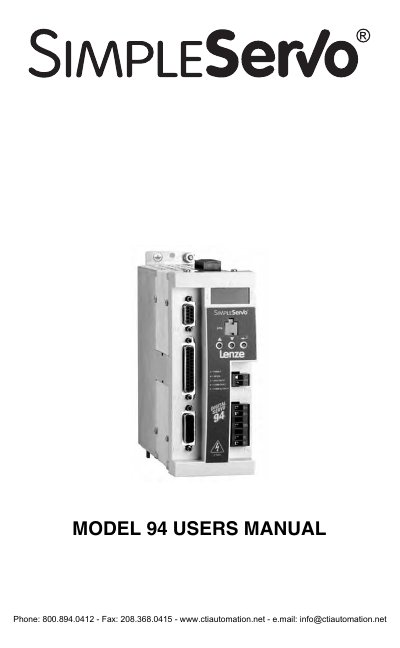

Lenze SimpleServo Model 94 Servo Controller User Manual - cover page
Brand
SimpleServo
Document type
User Manual
Language
English
Pages
54
File format
PDF
File size
2 MB
Published
07 August, 2012
Updated
30 September, 2023
MD5 checksum
5EC18DBBE9894FDCBFFB9464A9FA4BFA
PDF
Lenze SimpleServo Model 94 Servo Controller User Manual PDF

About this manual

The document provides operating instructions for the SimpleServo line of advanced general purpose servo drives. These controllers utilize Field Oriented control technology to enable high-quality motion control for variable speed and torque applications using PM synchronous motors.

The manual details four available mains configurations (suffixes T4N, S2P, Y2N, S1N) covering single-phase and three-phase inputs. It includes safety warnings regarding electrical shock up to 480 VAC, scope of supply information, detailed electrical specifications for various models, environmental ratings, operating modes (torque, velocity, position), connection diagrams for RS-232 interfaces, and physical dimensions.

What's inside

  • Safety Warnings
  • General Information
  • Scope of Supply
  • Legal regulations
  • Specifications
  • Operating Modes
  • Connections and I/O
  • Dimensions

Specifications

Power Device Carrier Frequency8.16 kHz

Frequently asked questions

What motors are compatible with the SimpleServo Model 94?

The controller is designed for closed loop control of variable speed and torque applications with PM synchronous motors.

What communication protocols does the Model 94 support?

The drive supports Point-to-Point (PPP) and Modbus RTU over RS485, as well as CANopen (DS301).

Download PDF (2 MB)
