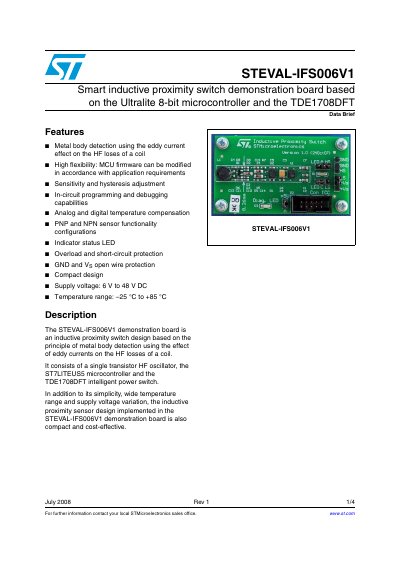

The STEVAL-IFS006V1 is a smart inductive proximity switch demonstration board based on the Ultralite 8-bit microcontroller and the TDE1708DFT. It features high flexibility, sensitivity and hysteresis adjustment, in-circuit programming and debugging capabilities, analog and digital temperature compensation, PNP and NPN sensor functionality configurations, indicator status LED, overload and short-circuit protection, GND and VS open wire protection, and compact design.
The STEVAL-IFS006V1 is a demonstration board designed for an inductive proximity switch. It operates based on the principle of metal body detection using the eddy current effect on the high-frequency losses of a coil. The design features a single transistor HF oscillator, the ST7LITEUSS5 microcontroller, and the TDE1708DFT intelligent power switch.
| Supply voltage | 6 V to 48 V DC |
|---|---|
| Temperature range | -25 °C to +85 °C |
| Microcontroller | ST7LITEUSS5 |
| Power switch | TDE1708DFT |
The device operates with a supply voltage between 6 V and 48 V DC.
The board functions within a temperature range of -25 °C to +85 °C.
The board supports both PNP and NPN sensor functionality configurations.
