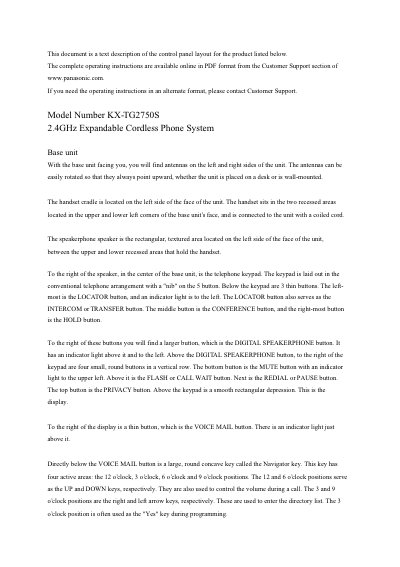

This document provides a text description of the control panel layout for the KX-TG2750S 2.4GHz Expandable Cordless Phone System Base unit. It describes the location of the antennas, handset cradle, speakerphone speaker, telephone keypad, and function buttons on the front of the base unit.
This document provides a text description of the control panel layout for the Panasonic KX-TG2750S 2.4GHz Expandable Cordless Phone System. It details the physical location and function of buttons and indicators on the base unit and the cordless handset.
The document covers the base unit's antennas, handset cradle, speakerphone, keypad, and specific function buttons such as LOCATOR, CONFERENCE, HOLD, DIGITAL SPEAKERPHONE, MUTE, FLASH, REDIAL, PRIVACY, VOICE MAIL, and the Navigator key. It also describes the layout of the cordless handset, including the earpiece, display, soft keys, TALK, SPEAKERPHONE, OFF, HOLD buttons, keypad, microphone, and headset jack.
The antenna is a narrow protrusion that is 2 inches long.
The charging cradle is about 2 inches wide and 1 inch deep.
The unit will beep when the cordless handset is properly placed in the cradle for charging.
