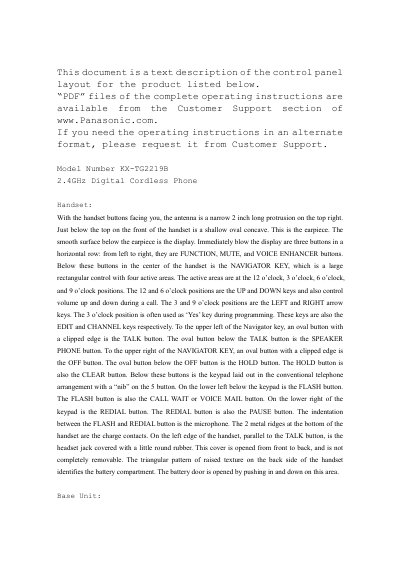

This document is a text description of the control panel layout for the Panasonic KX-TG2219B 2.4GHz Digital Cordless Phone. The handset features an antenna on the top right, an earpiece below the top, and a display below the earpiece. The display is followed by three buttons in a horizontal row: FUNCTION, MUTE, and VOICE ENHANCER. In the center of the handset, below these buttons, is the NAVIGATOR KEY, which is a rectangular control with four active areas. The active areas are located at the 12 o'clock, 3 o'clock, 6 o'clock, and 9 o'clock positions. The 12 and 6 o'clock positions serve as the UP and DOWN keys and control volume during a call. The 3 and 9 o'clock positions are the LEFT and RIGHT arrow keys and also function as the EDIT and CHANNEL keys. To the upper left of the NAVIGATOR KEY is the TALK button, and below it is the SPEAKER PHONE button.
This document provides a text-based description of the control panel layout for the Panasonic KX-TG2219B 2.4GHz Digital Cordless Phone. It details the location and function of buttons on both the handset and the base unit, including keys such as FUNCTION, MUTE, VOICE ENHANCER, NAVIGATOR KEY, TALK, SPEAKER PHONE, OFF, HOLD, FLASH, REDIAL, and HANDSET LOCATOR.
The antenna is a narrow 2 inch long protrusion on the top right of the handset.
The handset charging cradle is a 1 inch deep depression on the left side of the base unit.
The unit beeps when the handset is set properly in the cradle for charging.
