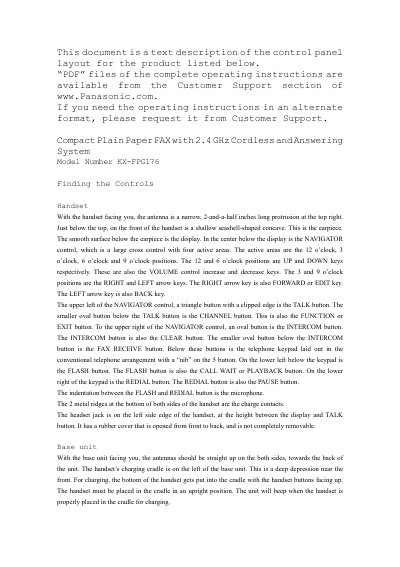

Panasonic KX-FPG176 Compact Plain Paper FAX Finding the Controls

About this manual

This text description details the layout of the handset controls, identifying features such as the NAVIGATOR control, TALK button, CHANNEL button, INTERCOM button, and various function keys like FLASH, REDIAL, and PAUSE.

The document also describes the base unit's control panel, which is divided into left, middle, and right sections. It covers the telephone keypad, display area, buttons for recording and playback (RECORD, ERASE, PLAY MESSAGES), navigation controls, and fax-specific functions like COPY, FAX START, and STOP.

What's inside

• Handset
• Base unit
• NAVIGATOR control
• Telephone keypad
• FAX buttons
• Display

Frequently asked questions

What is the length of the handset antenna?

The antenna on the handset is a narrow protrusion that is 2-and-a-half inches long.

How does the base unit indicate the handset is properly placed for charging?

The unit will beep when the handset is properly placed in the cradle.

What are the functions of the 12 and 6 o'clock positions on the NAVIGATOR control?

These positions serve as UP and DOWN keys, which also function as volume increase and decrease keys.
