This document is about the operating instructions of KX-FL521 model, which provides detailed information on the control panel layout and function features

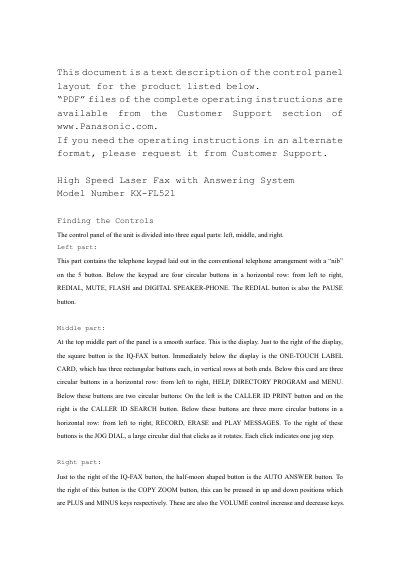

This guide provides a text description of the control panel layout for the Panasonic KX-FL521 High Speed Laser Fax with Answering System. The unit is divided into three sections: left, middle, and right.
The left section contains the telephone keypad and four circular buttons (REDIAL, MUTE, FLASH, DIGITAL SPEAKER-PHONE). The middle section features a display, an IQ-FAX button, ONE-TOUCH LABEL CARD, HELP/DIRECTORY PROGRAM/MENU buttons, Caller ID controls, message controls (RECORD/ERASE/PLAY), and a JOG DIAL. The right section includes the AUTO ANSWER button, COPY ZOOM/VOLUME controls, and additional copy/fax function buttons like COLLATE, RESOLUTION, QUICK SCAN START, COPY START, STOP, and FAX START.
It is a High Speed Laser Fax with an Answering System.
Each click indicates one jog step.
