Panasonic KX-FHD331/KX-FHD332 Compact Plain Paper Fax and Copier Control Panel Description

About this manual

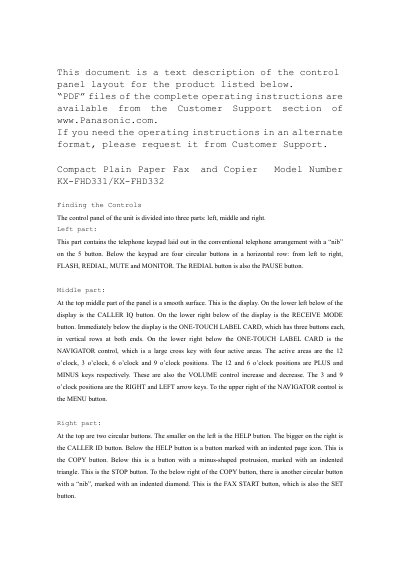

This document provides a text description of the control panel layout for the Panasonic KX-FHD331/KX-FHD332 Compact Plain Paper Fax and Copier. The complete operating instructions are available as PDF files from the Customer Support section of www.Panasonic.com.

The control panel is divided into three parts: left, middle, and right. The left part contains a telephone keypad with a "nib" on the 5 button and four circular buttons (FLASH, REDIAL, MUTE, MONITOR). The middle part features a display, CALLER IQ button, RECEIVE MODE button, ONE-TOUCH LABEL CARD, NAVIGATOR control, and MENU button. The right part includes HELP, CALLER ID, COPY, STOP, and FAX START/SET buttons.

What's inside

• Finding the Controls
• Left part controls
• Middle part controls
• Right part controls

Frequently asked questions

What is the model number of the Compact Plain Paper Fax and Copier described in this document?

The model number is KX-FHD331/KX-FHD332.

Which button on the control panel serves as the pause button?

The REDIAL button is also the PAUSE button.

What are the functions of the 12 o'clock and 6 o'clock positions on the NAVIGATOR control?

The 12 o'clock position is the PLUS key and the 6 o'clock position is the MINUS key.
