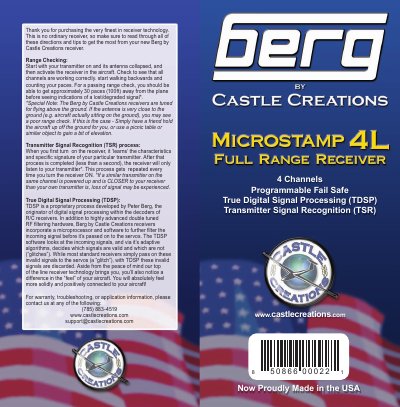

This is a user manual of Berg by Castle Creations 4-channel receiver.
This manual provides instructions for the Berg by Castle Creations MICROSTAMP 4L Full Range Receiver. It details the Transmitter Signal Recognition (TSR) and True Digital Signal Processing (TDSP) technologies used to ensure reliable signal reception. The document explains how to perform range checks and the specific power requirements necessary to maintain the receiver's internal learning cycle.
| Number of channels | 4 |
|---|---|
| Sensitivity | about 2.0uV |
| Dimensions | 0.6" x 1.35" x 0.35" |
| Weight | 4 grams |
| Filtering | Triple tuned RF circuitry with steep flank 8 pole IF ceramic filter set |
Upon power-up, the receiver enters a learning cycle for about one second to learn the transmitter's characteristics, including shift polarity and frame timing.
The receiver will not be damaged, but it will need to be powered up properly again to function as intended.
Place a servo in channel one and jumpers in channels two and four. Power up the receiver; the servo will "wave" to confirm the command.
