Common Sense RC ACDC-6 6S Balancing Charger Operating Manual

This document is the operating manual of Common Sense RC ACDC-6 6S Balancing Charger

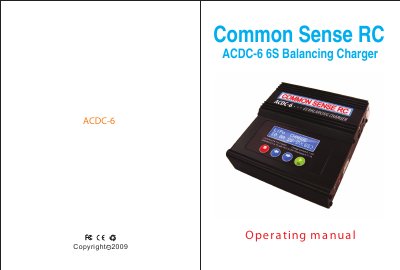

Common Sense RC ACDC-6 6S Balancing Charger Operating Manual - cover page
Brand
Common
Document type
User Manual
Language
Chinese
Pages
8
File format
PDF
File size
6.4 MB
Published
07 August, 2012
Updated
01 October, 2023
MD5 checksum
AB22BC81D83536E9AE8CEE295D2AD17B
PDF
Common Sense RC ACDC-6 6S Balancing Charger Operating Manual PDF

About this manual

This document is the operating manual for the Common Sense RC ACDC-6 6S Balancing Charger. It details the device's special features, such as its ability to accept various battery types (LiPo, Li-ion, NiMH, etc.) and its high conversion efficiency of up to 90%. The charger supports individual cell voltage balancing with a tolerance of 0.01V. This manual is written in Chinese.

What's inside

  • Special features
  • Performance parameter
  • Exterior and accessories
  • Key features
  • Operating instructions
  • Warning and error messages
  • Safety messages
  • After-sale service and guarantee

Specifications

Input voltage range (DC)11～18.0V
Charge current range0.1～5.0A
Discharge current range0.1～1.0A
Charge power limit50W
Discharge power limit5W
Balance current300mA
Balance tolerance0.01V

Frequently asked questions

What battery types does this charger accept?

It accepts LiPo, Li-ion, LiFe, NiMH, NiCd, and Pb batteries.

What is the operating temperature range?

The unit should not be used in environments below 5°C or above 50°C.

What is the warranty period?

The product comes with a one-year guarantee from the date of purchase.
