The TP-1010C is a versatile charger capable of charging/discharging lithium polymer, NiCd, NiMH, lead acid, and A123 cells. It supports a maximum charging/discharging current of 10A and a maximum output power of 220 watts. The software provides easy navigation and multiple charging/discharging options.

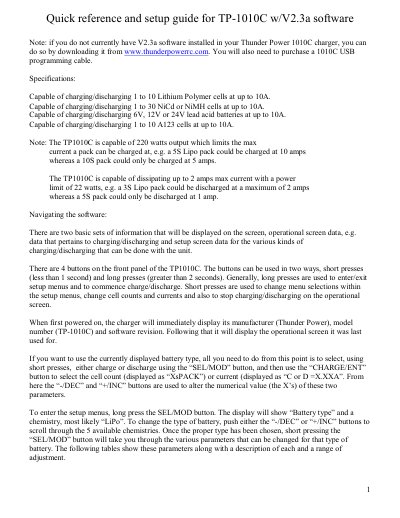

This document serves as a quick reference and setup guide for the Thunder Power TP-1010C charger running V2.3a software. It details the device's capabilities for charging and discharging various battery types, including Lithium Polymer, NiCd, NiMH, lead acid, and A123 cells, with currents up to 10A.
| Charging/Discharging Capacity (LiPo) | 1 to 10 cells at up to 10A |
|---|---|
| Charging/Discharging Capacity (NiCd/NiMH) | 1 to 30 cells at up to 10A |
| Charging/Discharging Capacity (Lead Acid) | 6V, 12V or 24V at up to 10A |
| Charging/Discharging Capacity (A123) | 1 to 10 cells at up to 10A |
| Max Output Power | 220 watts |
| Max Discharge Current | 2 amps |
| Max Discharge Power | 22 watts |
| Memory Locations | 50 memories |
You can download the V2.3a software from the Thunder Power website at www.thunderpowerrc.com.
The TP-1010C is capable of charging or discharging 1 to 30 NiCd or NiMH cells at up to 10A.
There are 10 memory locations per battery type, resulting in a total of 50 memories.
