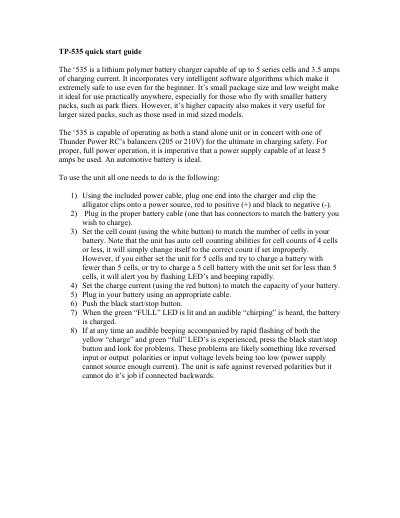

The TP-535 is a lithium polymer battery charger capable of charging up to 5 series cells and 3.5 amps of charging current. It incorporates very intelligent software algorithms which make it extremely safe to use even for the beginner. It’s small package size and low weight make it ideal for use practically anywhere, especially for those who fly with smaller battery packs, such as park fliers. However, it’s higher capacity also makes it very useful for larger sized packs, such as those used in mid sized models. The TP-535 is capable of operating as both a stand alone unit or in concert with one of Thunder Power RC’s balancers (205 or 210V) for the ultimate in charging safety. For proper, full power operation, it is imperative that a power supply capable of at least 5 amps be used. An automotive battery is ideal. To use the unit all one needs to do is the following: 1) Using the included power cable, plug one end into the charger and clip the alligator clips onto a power source, red to positive (+) and black to negative (-). 2) Plug in the proper battery cable (one that has connectors to match the battery you wish to charge). 3) Set the cell count (using the white button) to match the number of cells in your battery. Note that the unit has auto cell counting abilities for cell counts of 4 cells or less, it will simply change itself to the correct count if set improperly. However, if you either set the unit for 5 cells and try to charge a battery with fewer than 5 cells, the unit will not charge.
The Thunder Power RC 535 is a lithium polymer battery charger capable of charging up to 5 series cells with a maximum current of 3.5 amps. It features intelligent software algorithms for safety and is designed to be portable for use with park fliers or larger mid-sized models. The unit can operate as a standalone device or in conjunction with Thunder Power RC balancers (models 205 or 210V) for enhanced charging safety.
| Battery Chemistry | lithium polymer |
|---|---|
| Max Series Cells | 5 series cells |
| Max Charging Current | 3.5 amps |
| Power Supply Requirement | at least 5 amps |
Yes, the unit has auto cell counting abilities for cell counts of 4 cells or less.
The unit will alert you by flashing LED's and beeping rapidly.
Yes, it can operate in concert with balancers 205 or 210V for ultimate charging safety.
