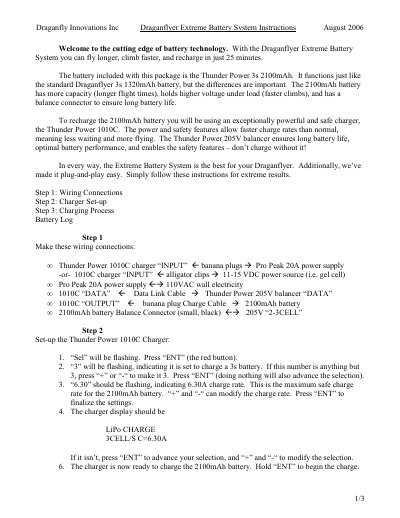

Draganflyer Extreme Battery System instruction manual, introduces the features of Extreme Battery System, including flight time, charging time, battery capacity, etc.
This document provides instructions for the Draganflyer Extreme Battery System, which includes a 2100mAh Thunder Power 3s battery. The system is designed to offer longer flight times, faster climb speeds, and recharge in approximately 25 minutes compared to standard batteries.
The guide details the wiring connections between the charger (Thunder Power 1010C), power supply, data balancer (Thunder Power 205V), and battery. It also explains how to set up the charger for a 3-cell lithium polymer battery with a maximum safe charge rate of 6.30A.
The charge time on a fully discharged battery will be about 25 minutes.
The manufacturer recommends limiting discharge depth to 85% of capacity, which is 1785mAh.
A reading of 12.6V open circuit indicates the battery is fully charged.
