This document describes a series of low-profile, high power density shielded drum core inductors suitable for digital cameras, CD players, cellular phones, PDAs, PCMCIA cards, and GPS systems. These inductors come in six sizes with an inductance range from 0.47uH to 1000uH and a current range from 6.00 to 0.088 Amps. They are ferrite shielded for low EMI.

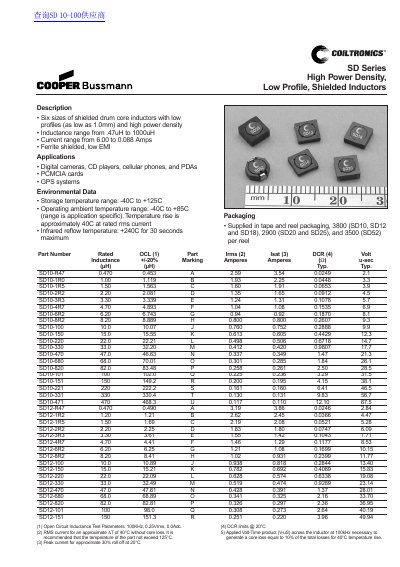

This document provides technical specifications for the COILTRONICS SD Series of high power density, low profile, shielded inductors manufactured by COOPER Bussmann. The series includes six sizes of shielded drum core inductors with low profiles as low as 1.0mm and an inductance range from .47uH to 1000uH.
| Inductance Range | .47UH to 1000UH |
|---|---|
| Current Range | 6.00 to 0.088 Amps |
| Operating Temperature | -40C to +85C |
| Storage Temperature | -40C to +125C |
| Reflow Temperature | +240C for 30 seconds maximum |
The recommended operating ambient temperature range is -40C to +85C.
The inductor experiences a temperature rise of approximately 40C at rated rms current.
