The document introduces the features and characteristics of Bareshaft Dimension Liquid Ring - Medium Vacuum Pumps TRSK 2002 - 5004 Liquid Ring & Rotary Vane Vacuum Pumps and System

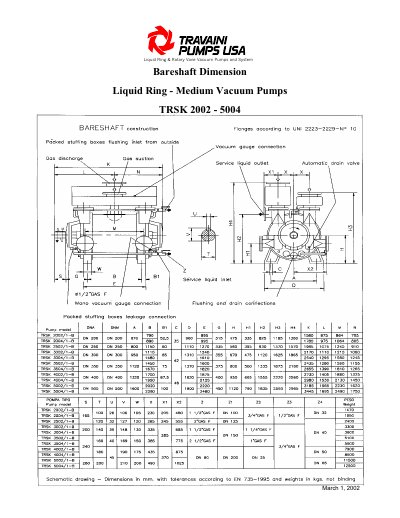

This document provides technical drawings and dimensional data for the Travaini TRSK series of liquid ring and rotary vane medium vacuum pumps. It specifically covers models ranging from TRSK 2002 to TRSK 5004.
The manual details the bare shaft construction, including packed stuffing boxes with flushing inlet from outside and flanges according to UNI 2223-2229-NP 10 standards. It lists specific dimensions for various connection points such as gas suction, gas discharge, service liquid outlet, and vacuum gauge connections.
The pump uses a bare shaft construction with packed stuffing boxes.
The flanges are made according to UNI 2223-2229-NP 10.
The TRSK 5004/1-B model weighs 12500 kg.
