The SMP-03 is a product of RFM, a 10-terminal ceramic surface-mount case with a size of 7 x 5 mm.

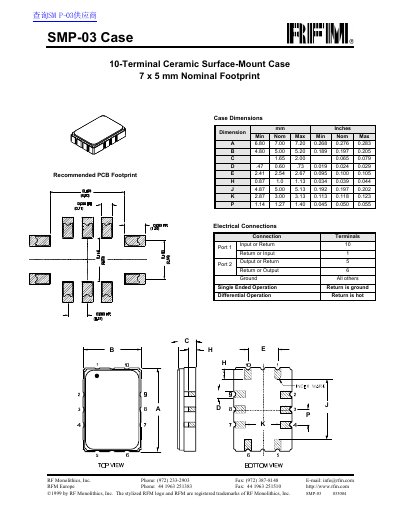

This document provides technical specifications for the RF Monolithics SMP-03, a 10-terminal ceramic surface-mount case with a 7 x 5mm nominal footprint. It includes detailed mechanical dimensions in millimeters and inches, as well as a wiring diagram for single-ended and differential electrical connections.
| Nominal Footprint | 7 x 5mm |
|---|---|
| Terminal Count | 10-Terminal |
| Material | Ceramic |
| Quantity Per Reel (Standard) | 500 |
| Quantity Per Reel (Tape) | 2000 |
The nominal footprint is 7 x 5mm.
The case is a 10-terminal ceramic surface-mount case.
