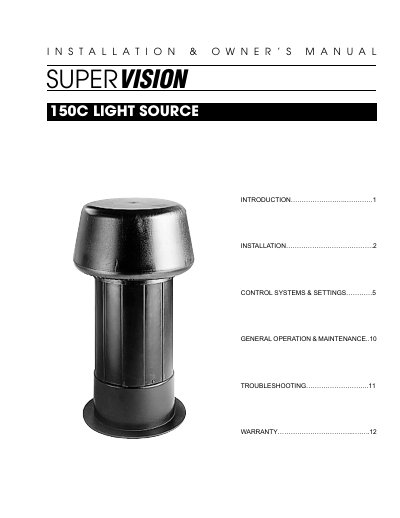

This document is about the introduction, installation, control systems and settings, general operation and maintenance, and troubleshooting of the 150C light source. The document emphasizes safety precautions and provides installation and operation guidelines.
The document serves as an owner's and installation guide for the SUPERVISION 150C light source. It outlines critical safety warnings regarding electrical connections, hot surfaces, and proper ventilation requirements before beginning setup.
Detailed instructions cover site preparation for surface or burial mounting, conduit and fiber optic cable assembly, unit disassembly and reassembly, and specific steps for installing the fiber head assembly.
| Input Voltage/Current | 120 VAC, 60Hz / 4.0 Amps |
|---|---|
| Lamp Type | 150 watt metal halide |
| Maximum Power Consumption | 450 Watts maximum |
| Operating Temperature | -29°C to 44°C |
| Fan Life Hours | 80,000 life hours |
| Warranty Period | 1 Year, excluding lamp |
The unit can be buried a maximum of 5 inches measured from the bottom of the unit.
Sweep elbows must be used for fiber optic conduit; 90° plumbing fittings are not allowed.
