Super Vision SV150T Light Source Installation Manual

This document mainly introduces the detection and treatment methods of common faults of Super Vision fiber optic lights

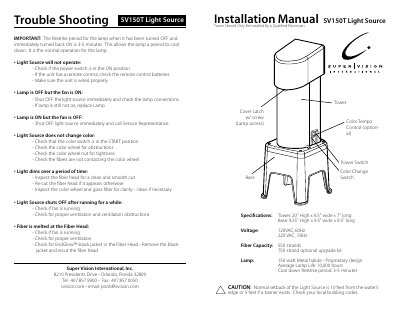

Super Vision SV150T Light Source Installation Manual - cover page
Brand
SV150T
Document type
Installation Guide
Language
English
Pages
4
File format
PDF
File size
269 KB
Published
06 August, 2012
Updated
30 September, 2023
MD5 checksum
92049139B59DFF31239EE8016A81681C
PDF
Super Vision SV150T Light Source Installation Manual PDF

About this manual

The document serves as an installation guide for the Super Vision SV150T Light Source. It details site preparation, electrical requirements (120VAC/60Hz or 220VAC/50Hz), and physical assembly steps including base positioning and tower securing. The unit features a proprietary 150-watt metal halide lamp with an average life of 10,000 hours.

What's inside

  • Trouble Shooting
  • Installation Guidelines
  • Lamp Replacement
  • Fiber Head Preparation
  • Electrical Wiring
  • Operations

Specifications

Voltage120VAC, 60Hz / 220 VAC , 50Hz
Fiber Capacity550 strands
Lamp Type150 watt Metal halide
Average Lamp Life10,000 hours

Frequently asked questions

What is the restrike period for the lamp after it has been turned off?

The restrike period is 3-5 minutes to allow the lamp to cool down.

What should be checked if the light source does not operate?

Check if the power switch is in the ON position, check remote control batteries if applicable, and ensure proper wiring.

What are the symptoms indicating the lamp needs replacement?

If the lamp is OFF but the fan is ON, shut off the unit immediately and replace the lamp.
