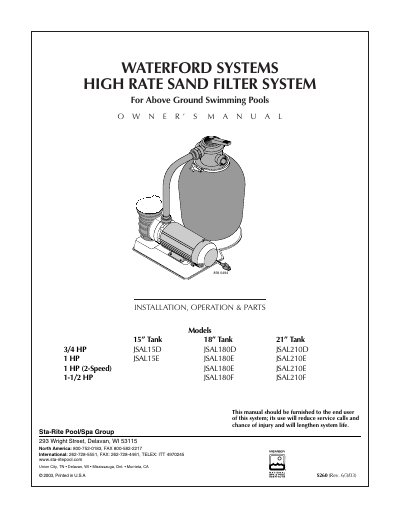

This document is a manual for the Waterford Systems high-rate sand filter system, designed for above ground swimming pools. The sand filter system offers quiet, efficient performance and is durable and reliable.
This manual provides comprehensive instructions for the installation, operation, and maintenance of Waterford Systems High Rate Sand Filter Systems intended for use with above-ground swimming pools. It covers safety precautions, dimensional data, general information regarding pool preparation and chemical balance, and detailed steps for installing the trap-to-pump assembly, filter mount, piping, valves, and electrical connections.
The document also details startup procedures, operation modes including backwashing, routine maintenance schedules, winterization storage instructions, and specific service guides for multi-port valves and pumps. A troubleshooting guide and a repair parts list are included to assist users in identifying issues and ordering necessary components.
| Effective Filter Area (15" Model) | 1.26 Ft. 2 (.117M2) |
|---|---|
| Max. Flow Rate (18" Model) | 31.5 GPM(123 L/m) |
| Max. Operating Pressure | 50 PSI(345 kPa) |
| Max. Operating Temperature | 95° F(35°C) |
| Recommended Sand Grade | #20 Silica Sand, Size Range .40-.55mm. |
Yes, models with a 3' cord or no cord are designed for use with permanently installed pools only.
The maximum operating pressure is 50 PSI (345 kPa).
