The PJ-0A20X Series of temperature compensated quartz crystal oscillators provide CMOS compatible signals. It has a frequency range from 10.0MHz to 52.0MHz, user specified tolerance, can withstand SMD reflow temperatures of up to 253°C for a maximum of 4 minutes, and is a space-saving alternative to discrete component oscillators. It has features such as high shock resistance, high reliability, and low jitter.

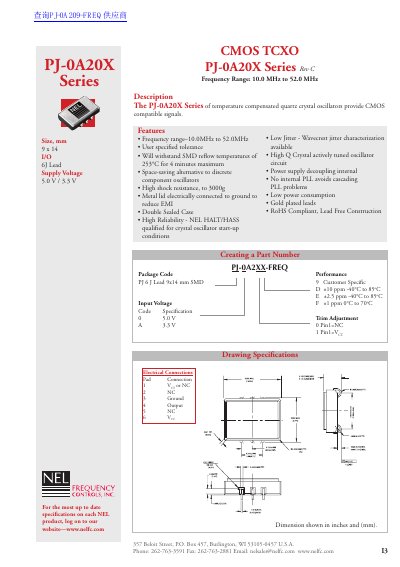

The document describes the NEL PJ-0A20X Series, which are temperature compensated quartz crystal oscillators providing CMOS compatible signals. These devices feature a frequency range from 10.0 MHz to 52.0 MHz and are designed for high reliability with various environmental and mechanical characteristics.
| Frequency Range | 10.0 MHz to 52.0 MHz |
|---|---|
| Supply Voltage | 5.0 V / 3.3 V |
| Operating Temperature | -40°C to 85ºC |
| Supply Current (No Load) | 4mA |
| Rise & Fall Time | 2 ns |
The device supports a frequency range from 10.0 MHz to 52.0 MHz.
Yes, the metal lid is electrically connected to ground to reduce EMI.
